SPECIFICATIONS

M.2 M-Key PCIe to SATA 3.0 Expansion Card – 5/6 Port Adapter, 6Gbps

Expand your computer's storage connectivity with this M.2 M-Key to SATA 3.0 expansion adapter card. Designed to add multiple SATA ports to compatible systems, it is suitable for connecting additional SATA storage devices such as HDDs and SSDs.

Key Features

• M.2 M-Key Interface – Designed for compatible M.2 M-Key slots.
• Multiple SATA Ports – Available in 5-port or 6-port configurations depending on the selected version.
• SATA 3.0 Support – Supports SATA III interface speeds of up to 6Gbps where supported by the connected hardware.
• Storage Expansion – Ideal for adding additional SATA drives to compatible PCs and systems.
• PCIe-Based Adapter – Utilises the compatible PCIe lanes provided by the M.2 slot.
• PM Function Support – Supports port multiplier functionality where supported by the controller, system and connected devices.
• Compact Design – Space-saving solution for desktop and storage builds.

Suitable For

• Desktop PC storage expansion
• SATA HDDs
• SATA SSDs
• Computer upgrades
• DIY PC builds
• Home server and storage systems
• Multi-drive configurations

Compatibility

Before purchasing, please check that your motherboard has a compatible M.2 M-Key slot with the required PCIe interface. M.2 slots can support different protocols and configurations, so compatibility is not guaranteed for every M.2 slot.

Important Information

The advertised 6Gbps is the maximum SATA interface speed and actual performance depends on the controller, motherboard, PCIe bandwidth, connected drive and system configuration. SATA cables and power connections may be required separately. Please confirm the number of ports and exact specifications of your selected version before ordering.

Package Includes:
1 × M.2 M-Key SATA 3.0 Expansion Adapter Card

Brand Name: NONE

Certification: CE

High-concerned chemical: none

Model Number: Riser Card

Package: Yes

Type: PCI-E Riser

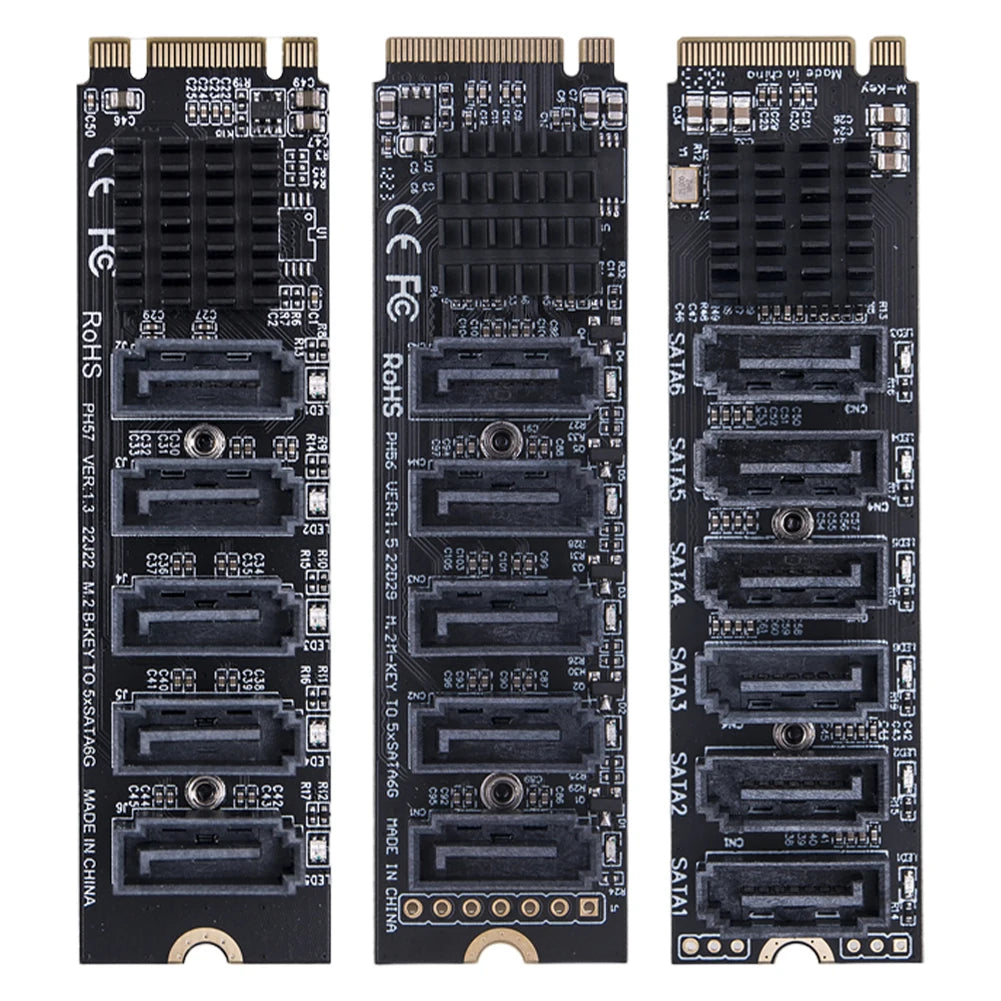

(NGFF to 5 port SATA/NVME to 5 port SATA/NVME to 6 port SATA)--Riser Card

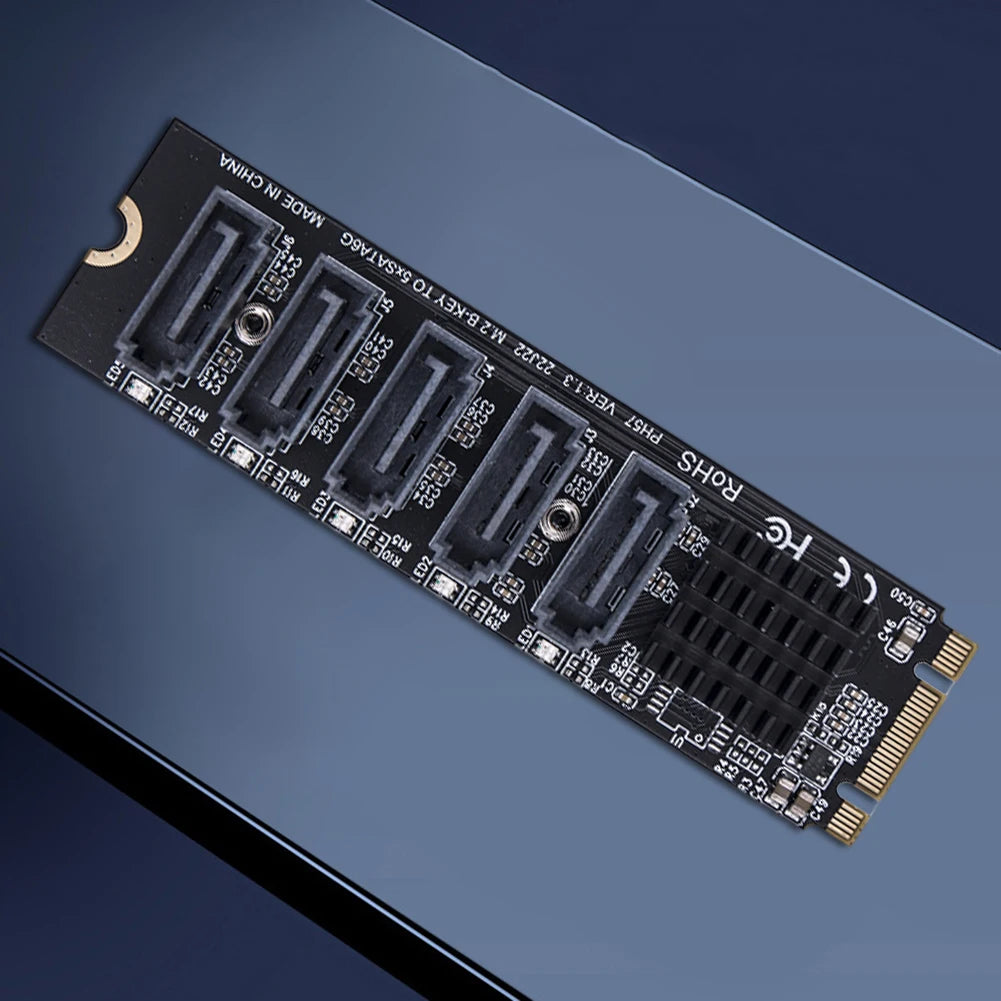

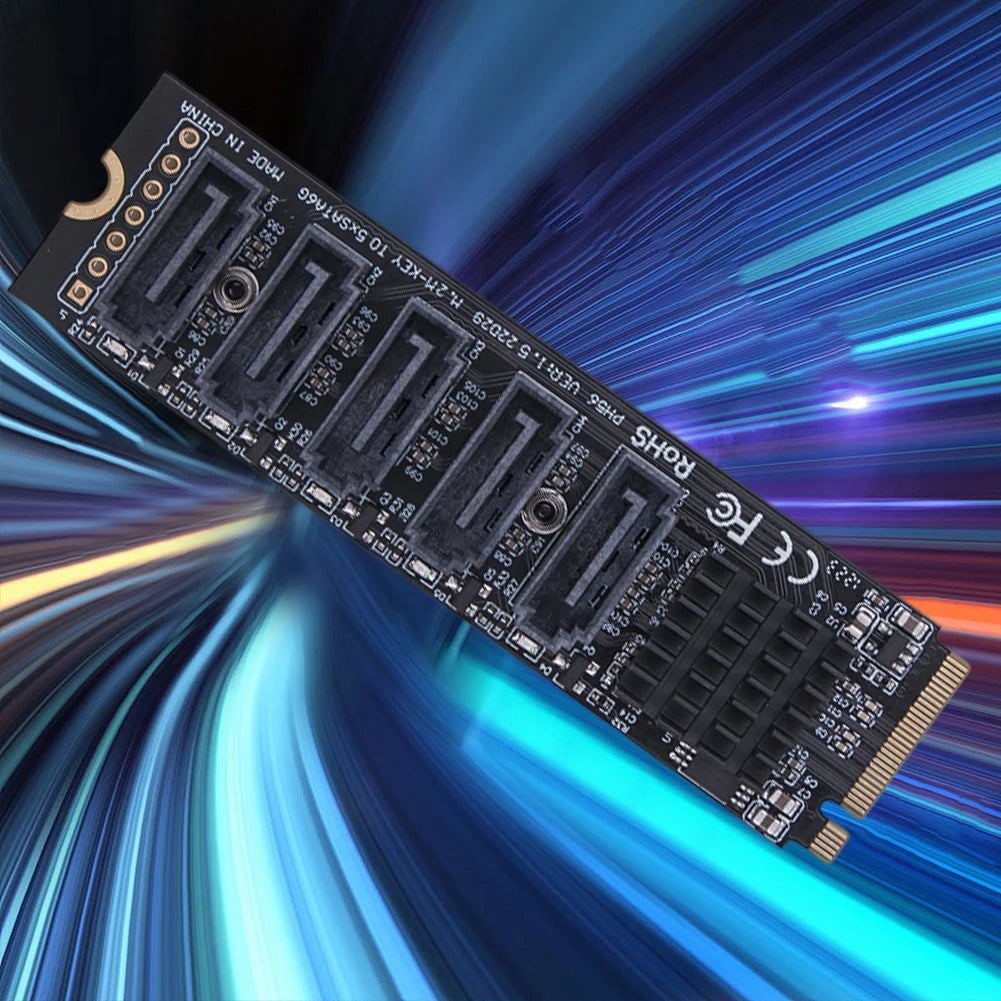

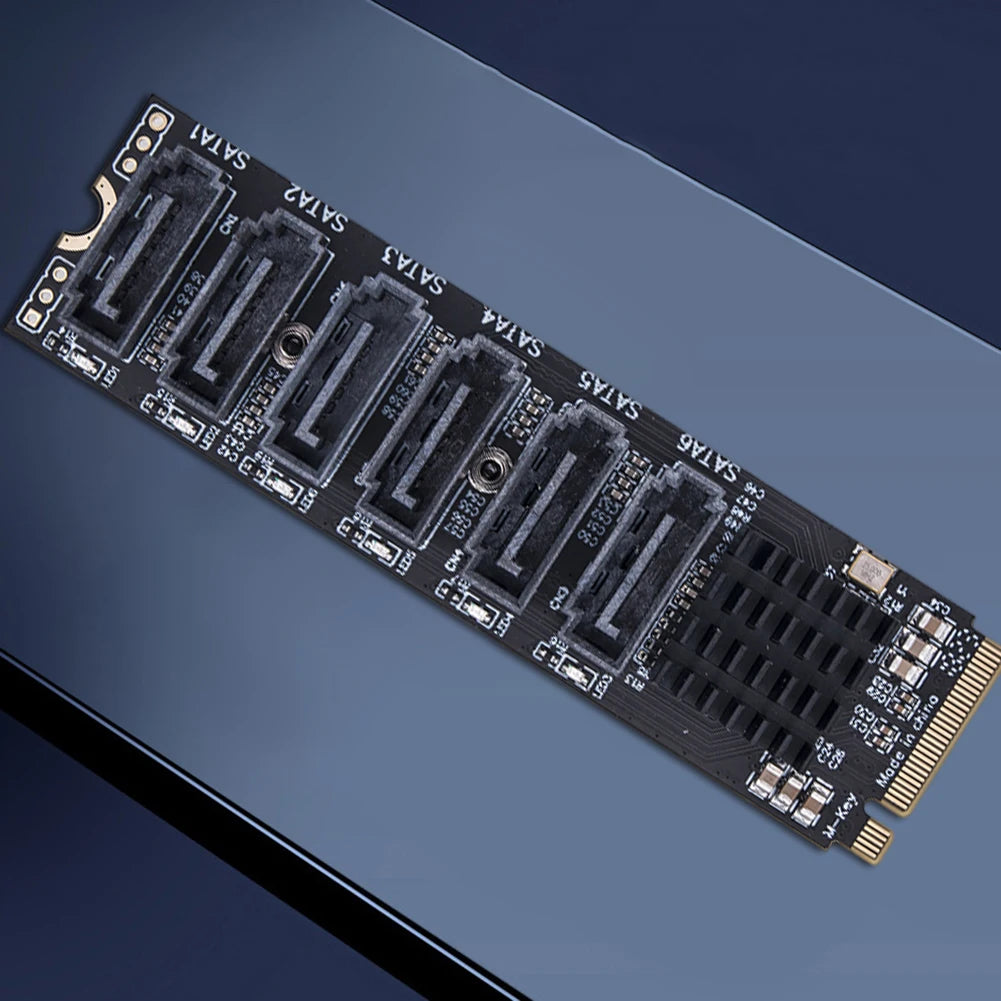

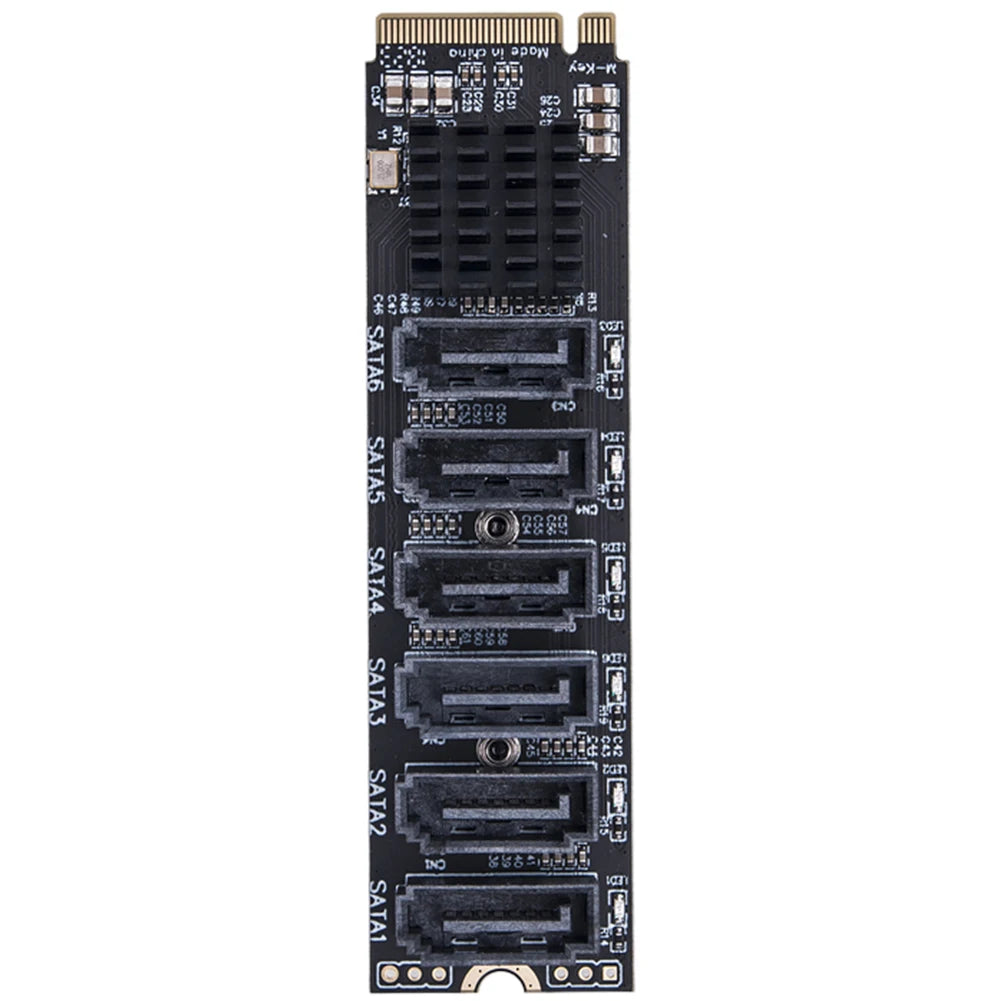

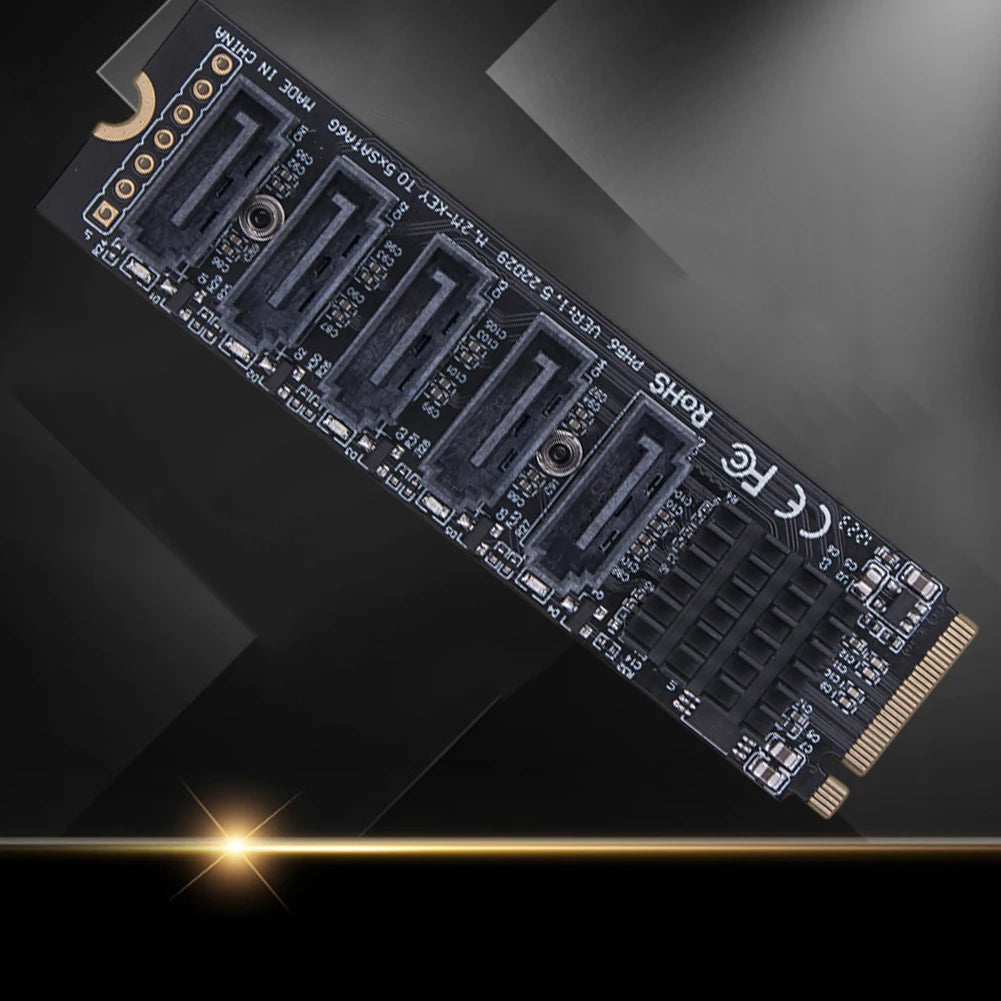

M.2 MKEY PCI-E Riser Card 5/6 Port Expansion Card M.2 To SATA 3.0 Adapter Card NVME To SATA SATA3.0 Adapter 6Gpbs Feature: 1. Perfect Size for M.2 Interface: This riser card has a compact size of 22x80mm, specifically designed to fit M.2 interfaces. Its dimensions make it compatible with various devices and allow for easy installation. 2. PCB Material: Made from high-quality PCB material, this expansion card exhibits excellent electrical performance and durability. It is designed to withstand regular usage, ensuring long-lasting reliability. 3. 5-Port M.2 NGFF to SATA3. 0: Supporting a SATA3.0 6Gbps transfer rate, this adapter card requires motherboard support for PM (Port Multiplier) functionality. It utilizes the JMB575 chip and is compatible with OS, Windows, and Linux systems. 4. 5-Port M.2 NVME to SATA3. 0: Utilizing a PCI-E 3.0 x2 interface for upstream connectivity, this converter achieves a maximum transfer rate of 16Gbps. The downstream connection is through a SATA3.0 interface, supporting up to 6Gbps transfer rate per port. It uses the JMB585 chip and is compatible with OS, Windows, and Linux systems. 5. 6-Port M.2 NVME to SATA3: With a PCI-E 3.0 x2 interface for upstream connection, this SATA3.0 adapter achieves a maximum transfer rate of 16Gbps. The downstream connection utilizes five ATA ports, each supporting a transfer rate of up to 6Gbps. It utilizes the A6M1166l chip and is compatible for OS, Windows, and Linux systems. Specification: Certification: NONE Origin: Mainland China Type: Add On Cards Model Number: Riser Card Size: 22x80mm/0.8x3.1inch Material: PCB 5-port M.2 NGFF to SATA3.0: SATA3.0 6Gbps Requires motherboard support PM Chip: JMB575 System: for os/Windows/Linux 5-port M.2 NVME to SATA3.0: Uplink PCI-E3.0x216Gbps Downstream SATA3.06Gbpsx6 Chip: JMB585 System: for os/Windows/Linux 6-port M.2 NVME to SATA3: Uplink PCI-E3.0x216Gbps Downstream 5ATA: 6 6G3526I Chip: A6M1166l System: for Maco5/Wndows/n Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.

Product	Included
NGFF to 5 port SATA：	1 x Riser Card	NVME to 5 port SATA：	1 x Riser Card	NVME to 6 port SATA：	1 x Riser Card
